Functional Description2

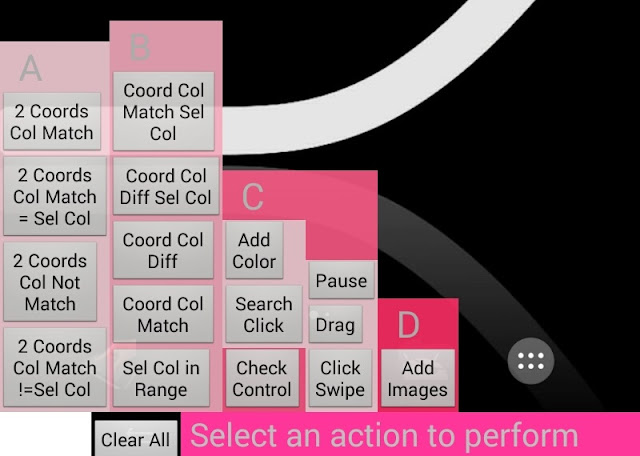

Check Group A,  and Check Group B is self explainatory.

so each page can do " A(any or non)+B (any or non) + C +D if you wanted
For Action C: you have 3 options.
Option 1(select 1 Search Click then Add Color for the search Click)
Option 2(select more than one Check Control)-> you can control the follow later on in control panel, if control panel button is not selected, then it will check colors, if matched, it will trigger a click action. in Control Panel. you can ignore the check perform action in the predefined location. if more than one control action is selected, it will do a rotation on the action to be performed. (1st and 2nd check control is selected in the Control page)
the first time triggered, will be the 1st location action, the second time triggered the same page will trigger the 2nd location action
Option 3(select more than one (pause/Drag/Click Swipe) Drag is still in beta stage, if it doesn't work, change Drag mode in Settings area. if your phone doesn't function probably, restart your phone, and try again with another mode. if it still not working, then let me know or just don't use it (know issue: Drag mode is a bit slower than you set up)

Clear All: it will remove all check points and action.
Text Description: it will show you what to do for the selected action.
